PVC Circular Boxes

Lustre circular boxes are provided with M4 brass insert with a load suspension capacity of 3 Kgs at 60°C. Thermal resistant from -5°C to +60°C

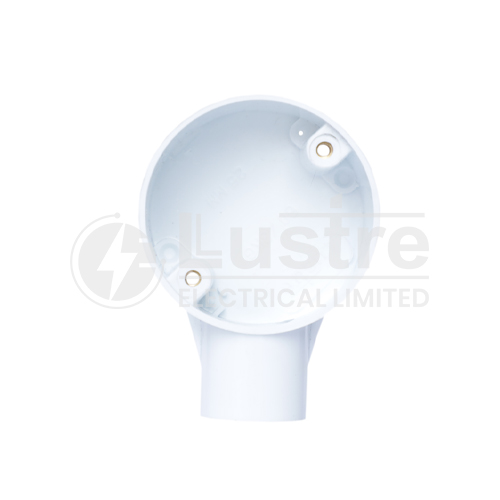

Terminal (One way)

Part no.	Sizes	Qty in Box	Qty in Carton
LSCB1W-20/WH	20mm	20	600
LSCB1W-25/WH	25mm	15	450

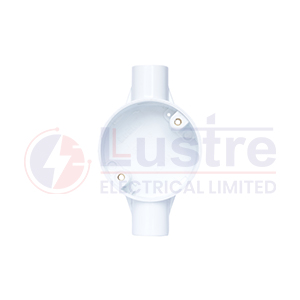

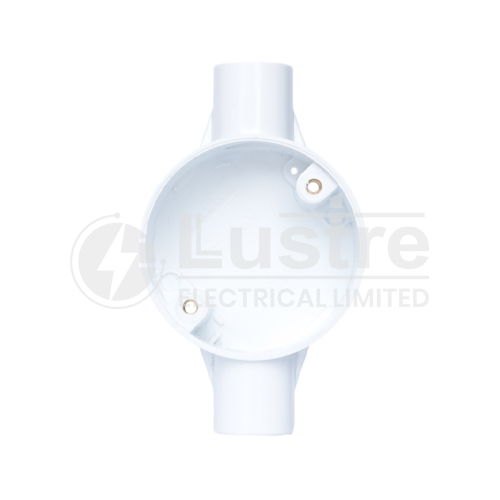

Through (2 way)

Part no.	Sizes	Qty in Box	Qty in Carton
LSCB2W-20/WH	20mm	20	400
LSCB2W-25/WH	25mm	15	300

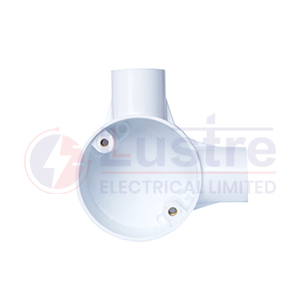

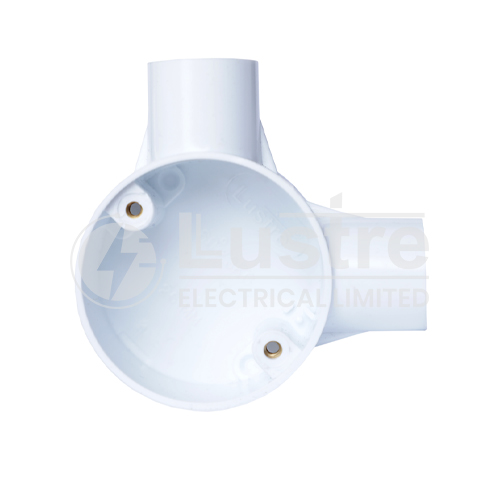

Angle (Two Way)

Part no.	Sizes	Qty in Box	Qty in Carton
LSCBA2W-20/WH	20mm	20	400
LSCBA2W-25/WH	25mm	15	300

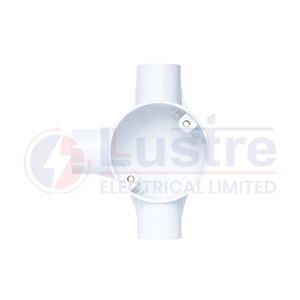

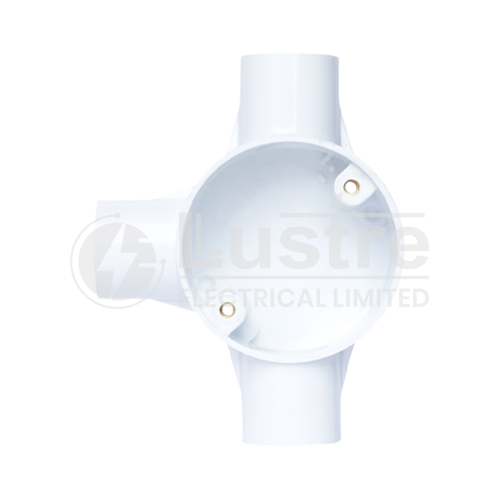

Tee (Three way)

Part no.	Sizes	Qty in Box	Qty in Carton
LSCB3W-20/WH	20mm	20	400
LSCB3W-25/WH	25mm	15	300

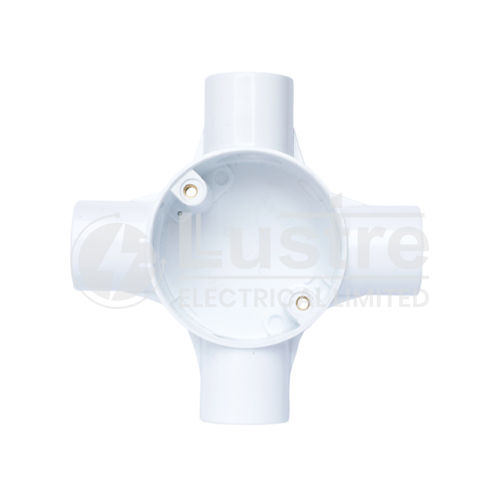

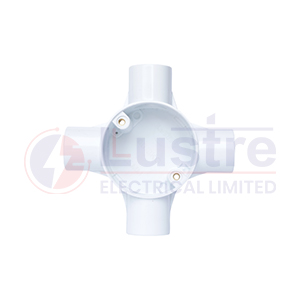

Intersection (Four way)

Part no.	Sizes	Qty in Box	Qty in Carton
LSCB4W-20/WH	20mm	20	400
LSCB4W-25/WH	25mm	15	240

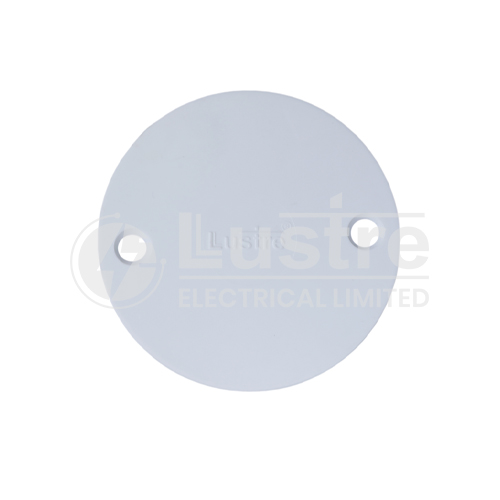

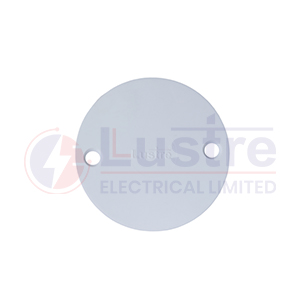

PVC Circular Lid 65mm without screw

Part no.	Sizes	Qty in Box	Qty in Carton
LSLCR-20/WH	-	100	2000

Switch & Socket Boxes with knockouts for use with conduit. External Dimensions : 1 Gang 87 x 87mm and 2 gang 87mm x 147mm
